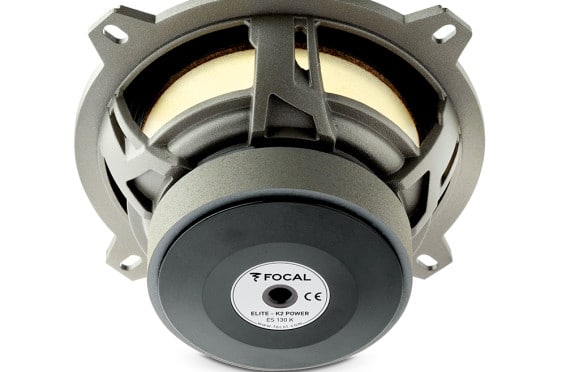

ES 130 K
Details:
- Product Line:
- Archive, Archived K2 Power
- Download:
- Infosheet (PDF)
- Download:
- Specsheet (PDF)
2-Way Component Kit
⋅ Inverted dome “M”-shaped tweeter
⋅ High linearity
⋅ High SPL (for the size)
Specifications:
| diameter | 5″ (100mm) |
|---|---|
| voice coil diameter | 1″ (25mm) |
| voice coil height | 0-1/2(12mm) |
| motor | Magnet |
| tweeter | TKM (“M” profile aramid fiber inverted dome) |
| cone | Composite K2 Power “W” sandwich cone |
| surround | Tuned Mass Damper (TMD) |
| separated crossover | 6-12/12dB (3.5kHz) |
| tweeter adjustable level | +3; 0; -3dB/oct |
| max power | 160W |
| nominal power | 80W RMS |
| sensitivity (2.83V/1m) | 90dB |
| frequency response | 65Hz-22kHz |
| impedance | 4 Ω |
| impedance | Supplied grilles |
