FRAK Tweeter

Details:

Price (MSRP):
  1,200.00
Product Line:
Elite, K2 Power M
Download:
 Infosheet (PDF)
Download:
 Specsheet (PDF)

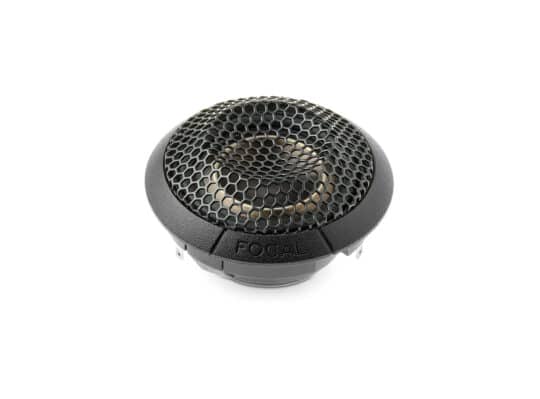

32mm Tweeter

A true revolution in Car Audio, the FRAK tweeter is a Focal exclusive. Unique in terms of its frequency response, it features an Aluminium M-profile cone and incorporates various patented technologies that bring unprecedented dynamics to your installation. It combines perfectly with the other products in the K2 Power M range for pure hi-fi sound, signature of Focal. Available “à la carte”, the K2 Power M products enable you to create the active audio system of your choice for a bespoke installation.

Features

    • TMD® (Tuned Mass Damper) profile surround

      Patented technology, low distortion allowing unparalleled cone control

    • ‘M’-profile Aluminum cone

      A sound with ultra-real definition

    • Aluminium frame

      Rigid, non-magnetic and exclusive profile

    • Progressive profile spider

      Increases sound linearity, precision and dynamics

    • Neodynium magnet

      Outstanding sound performance within a shallow depth

Key points

  • • Exclusive ‘M’-profile Aluminum cone
  • • Full-range tweeter
  • • Active product
  • • 600Hz – 32Hz frequency response

Specifications

TypeTweeter
Woofer1-1/4″ (32mm)
Depth3/4″ (19.5mm)
ConeAluminum, M-shaped
Maximum power150W
Nominal power25W RMS
Sensitivity (2.83V/1m)91dB
Frequency response600Hz- 32kHz
Impedance4Ώ
MagnetNeodymium
Voice-coil diameter1″ (25mm)
SuspensionTMD®
