SUB 5 KM

Details:

Price (MSRP):
  840.00
Product Line:
Elite, K2 Power M
Download:
 Infosheet (PDF)
Download:
 Specsheet (PDF)

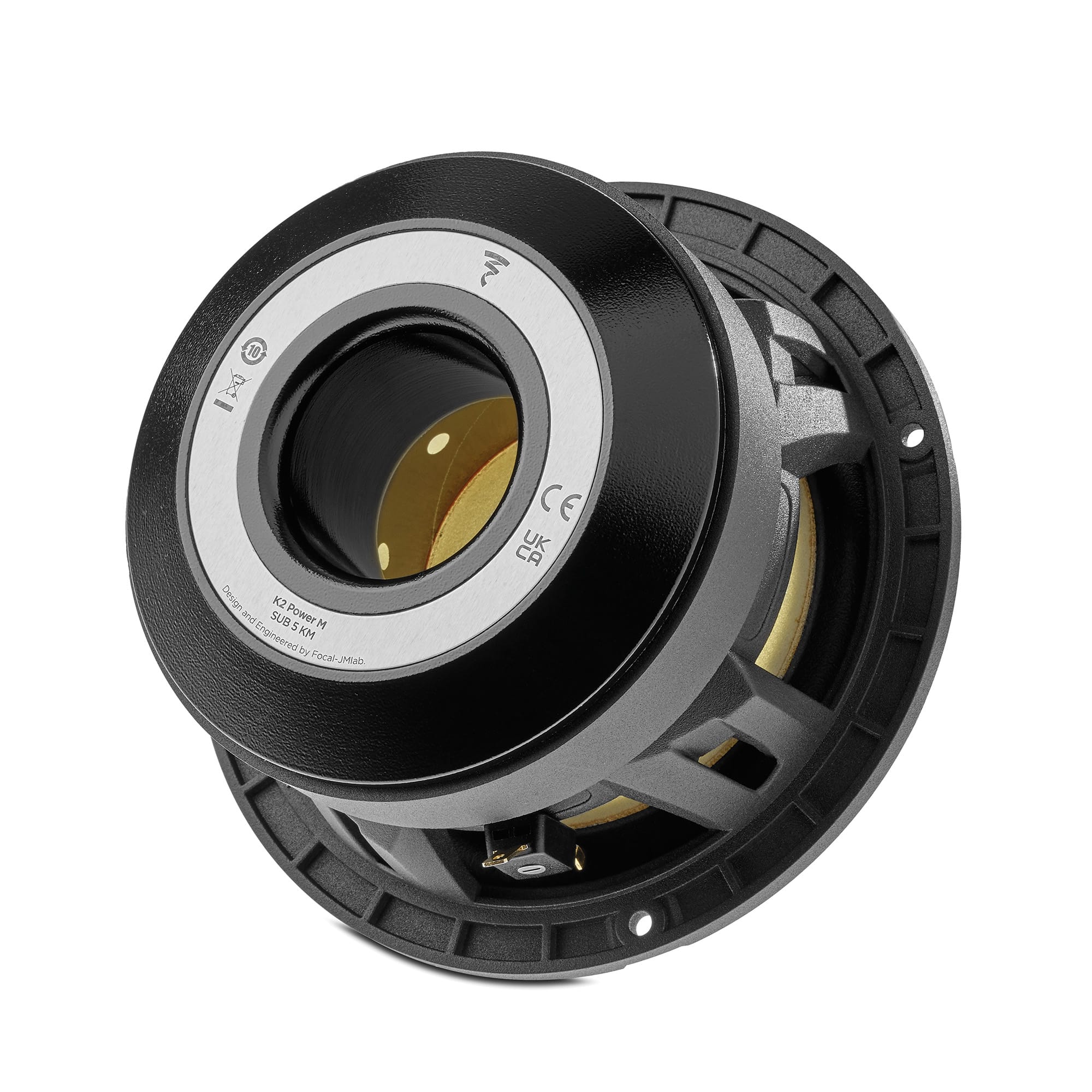

5¾” (145mm) Subwoofer

Like all the speaker drivers in the K2 Power M range, the 5 3/4” (145mm) subwoofer 5 KM is fitted with Focal’s iconic aramid fibre K2 sandwich cone. And for an even bigger performance, Focal’s engineers have combined it with their famous ‘M’-profile. This shape of cone offers better frequency response and better sound dispersion, and reduces speaker driver depth. Attributes that go hand-in-hand with the power and dynamics delivered by the K2 cone. Your system delivers faultless music and pure, high-fidelity sound to provide the ultimate in driving and listening pleasure.

Power and compactness are the watchwords of the new K2 Power M line. Our engineers have packed the best Focal technologies, around our iconic K2 cone made with aramid fibre, renowned for its exceptional dynamics and high performance. Available “à la carte”, the K2 Power M products enable you to create the active audio system of your choice for a bespoke installation.

Features

    • ‘M’-profile Aramid fibre K2 cone

      A ‘signature’ K2 sound with a cone shape that allows the reduction of harmonic distortion

    • Engraved serial number

      Guarantee of authenticity

    • Aluminium frame

      Rigid, non-magnetic and exclusive profile

    • Progressive profile spider

      Increases sound linearity, precision and dynamics

    • Ferrite magnet

      Stable power handling

Key points

  • • Exclusive ‘M’-profile K2 cone
  • • Compact speaker driver
  • • Exceptional power handling
  • • Active product
  • • Aluminium grille (optional)

Specifications





TypeSubwoofer
Woofer5″ (145mm)
Depth2-3/8″ (69mm)
ConeK2 Sandwich, M-shaped
Maximum power400W
Nominal power200W RMS
Sensitivity (2.83V/1m)86dB
Frequency response35Hz- 250kHz
Impedance4Ώ
MagnetFerrite
Voice-coil diameter2-3/8″ (60mm)
SuspensionCatenary profile
Sealed enclosure (Vol/F-3dB)4L / 41Hz
6L / 38Hz
Photo Gallery:
